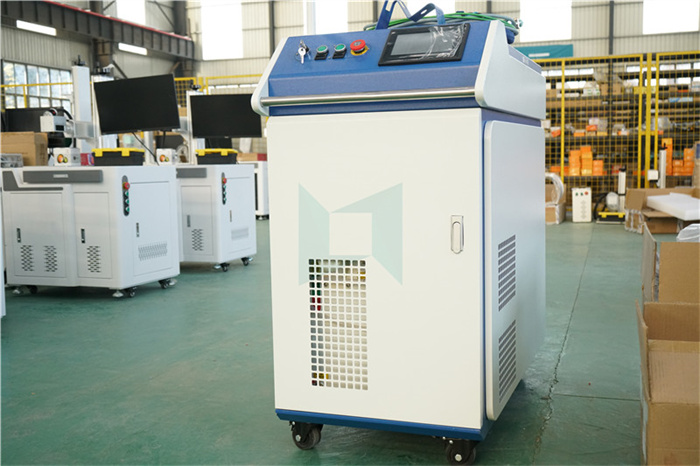

1000W 1500W 2000W Manual Handheld Laser Welding Fiber Laser Welder Machine For Stainless Steel Metal Sheet

Танилцуулга

With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features. AD metal letters are made of stainless steel, aluminum, copper or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It’s widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.

Technical Index:
Model No.	CTZG-200W	CTZG-400W
Лазерын хүч	200W	400 Вт
Лазерын эх сурвалж	Nd3+: YAG bar Φ7*145mm	Nd3+: YAG bar Φ8*155mm
Лазер долгионы урт	1064нм
Laser Tube Qty’	1 pc	2 pcs
Single-pulse Energy	80J	120J
Pulse Duration	0.2~20ms
Frequency Range	0.1~50Hz	0.1~100Hz
Workable Current	50~200A	50~300A
Welding Spot Diameter	0.3~1.0mm	0.3~1.2mm
Table Size	W1000*L750mm
Table Size	W1000*L750mm
Laser Arm Stretch	total length 1370mm,strech distance 750mm
Fiber Cable Length	5 meters (work distance of pen mode)
Settings Memory	100 groups
Control Panel	7” color LED touch screen
Language Option	English/Chinese
Power Supply	220V/50Hz (220V/60Hz optional)	380V/50Hz (380V/60Hz optional)
Power Consumption	Laser: 8KW , Chiller:1KW	Laser:14KW , Chiller:3.3KW
Dimensions(mm)	Laser &table: 17307501250 Chiller: 480580800 (1HP)	Laser & table: 17307501250 Chiller: 11006501350 (3HP)
Цэвэр жин	305KG	400KG
Package Volume	2.5CBM	3CBM
Package Weight	345KG	450KG
Applicable Materials	Stainless Steel, Titanium, Iron, Galvanized sheet	Stainless Steel, 1000 Serial Aluminum, Copper Alloy, Titanium, Iron, Galvanized sheet
Material Thickness	<=1.5mm	<=2.5mm

Advantages

Sample Show

Холбогдох салбар:
1. Аэропорт болон сансрын, механизм, электрон, харилцаа холбоо, динамик, химийн, автомашины үйлдвэрлэл болон бусад салбарт өргөн хэрэглэгддэг.
2. Гидравлик даралтын жийргэвч, бензин цэвэрлэгч, зүүн хийн мэдрэгч, цахилгаан соронзон хавхлага, хөтлөгч асаах статор зэрэг автомашины сэлбэг хэрэгслийг гагнах.
3. Гар утасны батерей болон цахилгаан батерей зэрэг литийн ион батерейг нягт гагнах.
4. Цахиурын ган хавтанг гагнах гэх мэт металлургийн салбарт.
5. Цэргийн салбарт хөдөлгүүр болон хөдөлгүүрийн давхаргыг гагнах.
6. Электрон эд ангиудыг нарийн цэгэн гагнуур болон релений ойр гагнуур.
7. In electrical equipment industry, such as silicon steel sheet welding, the rotor of the air-conditioner Drive welding, and creepage protection welding.

Холбогдох материалууд:
Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
