workshop sheet metal C type power press mechanical punching machine

Гэр / Бүтээгдэхүүн / workshop sheet metal C type power press mechanical punching machine

Бүтээгдэхүүний тодорхойлолт

JH21series open back punching machine with dry clutch

  • Welded body with steel plate and high intensity.
  • Main motor is made by Siemens.
  • Adopts combined pneumatic friction clutch and brake.
  • Cluster gear adopts the flooding oil lubrication.
  • Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
  • Equipped with hydraulic overload protecting device.
  • JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.
  • JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
  • JH21-25B, JH21-45 and above type equipped with balance cylinder.
  • Duplex valves imported.
  • Electric compelling grease lubrication system.
  • Balancing cylinder adopts manual lubrication system.
  • One set of blowing device.
  • Controlled by PLC with international brand.
  • Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
  • Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.

Тодорхойлолт

SNЗүйлНэгжТодорхойлолт
1Нэрлэсэн хүчкН1600
2Stroke under nominal forceмм6
3Slide block strokeмм160
4Number of Fixed strokeмин-140
5Number of Variable strokeмин-135-50
6Max die set heightмм350
7Die set height adjustmentкВт110
8Distance from slide block centre to the frameмм380
9Worktable dimensions (F/B*L/R)мм740*1300
10Dimensions of worktable holeммΦ 300*50* Φ260
11Thickness of bolsterмм150
12Hole dimensions in bed (Diameter /F/B*L/R)мм480*600
13Dimensions of slide block bottom surface (F/B*L/R)мм580*770
14Size of the handle hole (Diameter*Depth)ммΦ65*85
15Distance between columns of bodyмм850
16Үндсэн моторын хүчкВт15
17Dimensions(F/B*L/R*H)мм2230*1630*3210
18Цэвэр жинкг14500

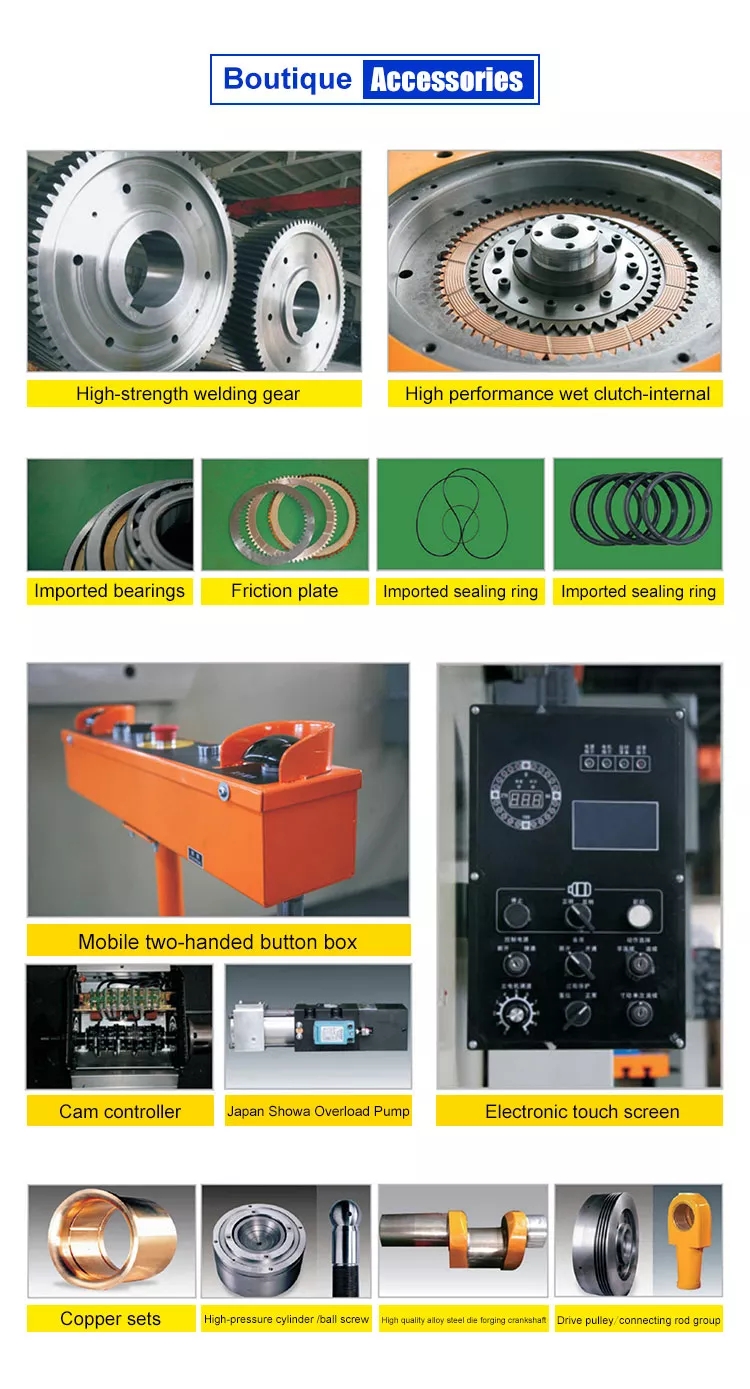

Details Picture
